Automatic Tube Welding Machine of Condenser U Tubing Auto Fusion TIG Welding No Wire Feeding
Brand: Hyzont
Model: UFH-15
Application:
This is a special designed TIG welding head for stainless steel condenser U tube automatic welding, which is almost same with orbital welding process
- Condenser U tube welding
- Evaporator U tube welding
- Heat exchanger fabricating
- Carbon Steel U tubing weld
- Stainless Steel U tubing weld
Features:
Customized design, suitable for all type U tube
Quick-install Clamps, easy to use
Low labor cost and high efficiency welding
Collision-free and good contact narrow space U tube welding
Heat- resisting components with compact design, light and durable
Water circuit cooling design for long time working
Specification:
| Model | UFH-15 |
| Material | Carbon steel, Stainless Steel, Titanium Alloy |
| Tube Fitting | Plugged U tube |
| Welding Process | TIG/GTAW (no wire feeding) |
| Tube OD(mm/inch) | 12.7-15.88 |
| Tube Wall Thickness(mm) | ≤3mm |
| Tungsten OD(mm) | 1.6 |
| Rotating | 360 degree free rotated and Auto reset ;all position welding; |
| Rotation speed(rpm) | 0.3~6 |
| Protective Gas | Argon |
| Cooling | Water |
| Cooling Flow(ml/min) | 1000ml/min |
| Cable Length | 6m |
| Main Dimension(mm) |
| Weight(kg) | 1kg |
| Dimension(mm) | 377*38*100 |
Detailed Pictures

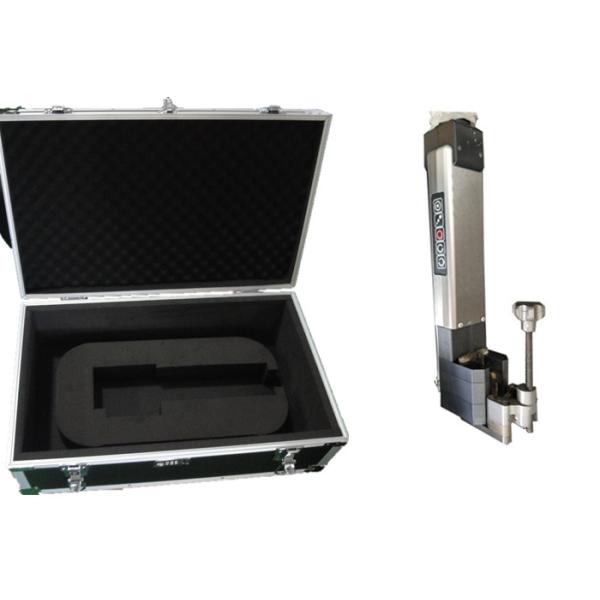

Condensor U tubing Automatic Welding Machine head well packed by flight Case
UFH-15 welding machine butt welding
Order information
| Order Code | K200150-U |
| Packing | Flight case |
| Packing Size | 520*400*200mm |
| Packing Weight | 13Kg + 23Kg (Welding Power Source OBT-200) |
| Delivery Time | 3 Days after payment |
Hyzont UFH-15 Orbital Welding Machine Youtube Video Link:
https://www.youtube.com/watch?v=MkraxggD7QU
